Feature
0.000-9999prescaler
EEPROM back up system
AUX.output +12V Max.20mA
Bi-input
Free power supply 95V-245V |
|
| Counter,Timer |

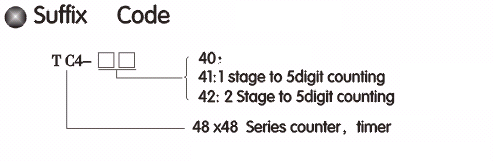

| Model code |
Preset |
Max.countting |
Input voltage |
Counting cps |
| TC4-41 |
1Stage |
9999 |
5V-30V |
300/1K |
| TC4-42 |
2Stage |
9999 |
5V-30V |
300/1K |
|
| Specification |
| Counting mode |
UP |
| C.P.S |
300cps/1kcps |
| Input Level |
5.5V≤H≤30V |
| Display |
Red LED(14.2mmH) |
| Timer Range |
999.9S 9999S 999.9M 9999M 999.9H |
| Operaring Temp. |
0-50 |
| Power supply |
95V-245V |
| Power consumption |
≤4.5VA |
| Dielectic Strength |
Ac 1500V 1min |
| Issulation Res. |
DC 500V≥100MW |
| Relay volume |
250V/2A |
|
 |
 |
 |
|
|
